Standard flexible stainless steel hose - annular, 316, 304, 321

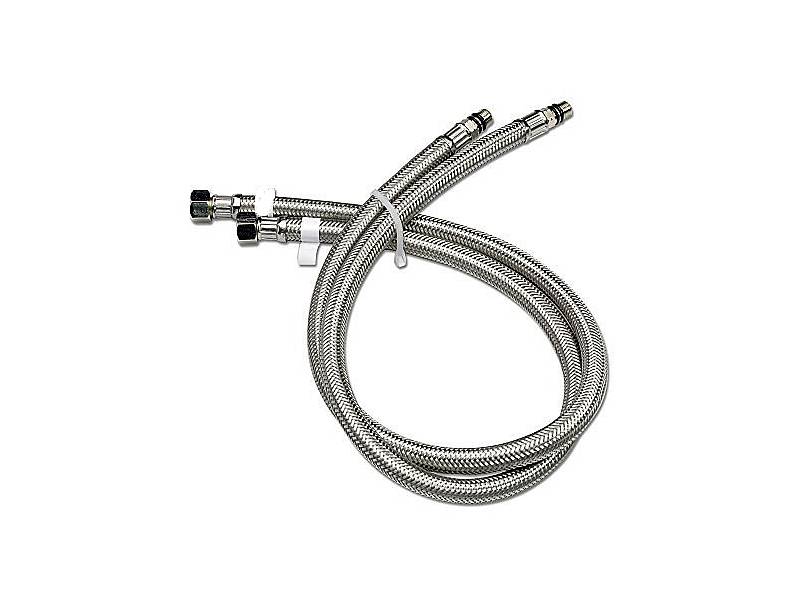

Standard flexible stainless steel hose, annular
Standard flexible stainless steel hose available in 1/4 in. - 2 in.

Standard flexible stainless steel hose are available in 304, 321, 316L in annular profile. For different purposes, unbraided, single braided and double braided hoses are at stock. High percentage of braid coverage protects the corrugated hose from damaging by ambient environment.

Standard flexible stainless hose are widely used in a great number of fields, such as petrochemical, hot oil and lube lines, chemical transfer, solvent and steam lines, pump connections and other applications where capabilities of withstanding extremely high pressures, temperatures and great flexibilities are required.

Product description:

Note: The specifications in the table below are tested at 70 °F. Consult Temperature Correction Factors for practical purposes.

Technical specifications

standard flexible stainless steel hose - annular
Nominal Size I.D. (inch) Hose Type Braids Hose O.D. Min. Bend Radius (in.) Max. Working pressure (psi) Normal Burst Pressure (psi) Weight per Foot (lbs.)
1/4 200H 0 0.41 4.5 90 - 0.04
201H 1 0.47 1800 7233 0.11
202H 2 0.53 2700 9100 0.18
3/8 200H 0 0.65 5 70 - 0.1
201H 1 0.71 1558 6230 0.2
202H 2 0.77 2336 9345 0.3
1/2 200H 0 0.77 5.5 70 - 0.11
201H 1 0.83 1186 4743 0.22
202H 2 0.89 1779 7115 0.33
5/8 200H 0 0.96 7 57 - 0.17
201H 1 1.02 1205 4820 0.33
202H 2 1.08 1808 7230 0.49
3/4 200H 0 1.16 8 43 - 0.19
201H 1 1.22 898 3591 0.37
202H 2 1.28 1347 5387 0.55
1 200H 0 1.47 9 43 - 0.26
201H 1 1.53 718 2872 0.5
202H 2 1.59 1077 4308 0.74
1-1/4 200H 0 1.75 10 43 - 0.29
201H 1 1.83 645 2581 0.61
202H 2 1.91 968 3872 0.93
1-1/2 200H 0 2.08 11 28 - 0.47
201H 1 2.16 531 2125 0.85
202H 2 2.24 797 3188 1.23
2 200H 0 2.61 13 14 - 0.59
201H 1 2.69 449 1797 1.11
202H 2 2.77 674 2696 1.63



If you need to consult the price, please contact the business department by e-mail:

sales@flexible-hose.org

When you contact us, please provide your detail requirements.
That will help us give you a valid quotation.
